Most Australian homes rely on ducted heating that blasts warm air unevenly, circulates dust, and leaves some rooms too hot while others stay cold. Hydronic heating solves this by circulating hot water through pipes to radiators, underfloor coils, or wall panels, producing silent, even warmth with no allergens and lower running costs. In this guide, we cover how hydronic systems work, the different emitter and heat source options, installation costs, and how to decide if it’s the right fit for your home.
What Is Hydronic Heating?
Hydronic heating is a water-based central heating system that uses a heat source to warm water and circulate it through a network of pipes to emitters installed throughout the home. To explore the full range of configurations available for Australian homes. The systems operate as a sealed circuit: the same water is continuously reheated and recirculated. There are no open vents, no fan motors driving airflow through ducts, and no filters to clean. What you get instead is quiet, steady warmth that radiates from the floor, walls, or panels outward into the room.
Key characteristics of a hydronic heating system:
- Silent operation with no fans or ductwork
- Radiant heat that warms surfaces and objects, not just circulating air
- Zone control for independent temperature management by room or area
- Compatible with multiple heat sources including gas boilers, heat pumps, and solar collectors
How Does a Hydronic Heating System Work?
A hydronic heating system operates on a simple closed-loop principle which heats water at a central source, moves it through insulated pipes, releases the heat through emitters, and returns the cooled water to be reheated. In practice, this loop involves a heat source, a circulation pump, a network of pipes running through the building, and the emitters in each room.
- Heat generation: The heat source raises water to the required flow temperature. Gas boilers typically produce water at 60 to 80 degrees Celsius; heat pumps and underfloor systems often operate more efficiently at lower flow temperatures of 35 to 55 degrees.
- Circulation: A pump moves the heated water through insulated pipes to each emitter in the home.
- Heat release: Emitters transfer warmth into the room through radiation and natural convection, with no fan required.
- Return and reheat: Cooled water flows back to the heat source through a return pipe and the cycle begins again.
Zone valves and digital thermostats control which areas receive heat at any given time. A bedroom can be held at 18 degrees while a living area runs at 22 degrees, without heating unused rooms or wasting energy.

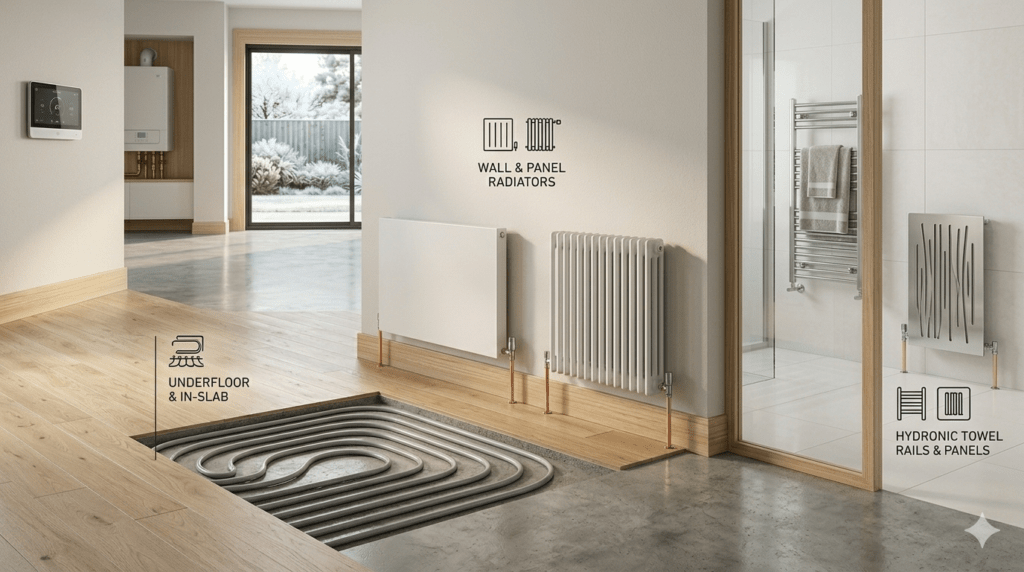

Types of Hydronic Heating Emitters
The emitter determines how heat is delivered, how quickly the system responds, and how it integrates with the home’s structure. Hydronic systems support several emitter types and many installations combine more than one.

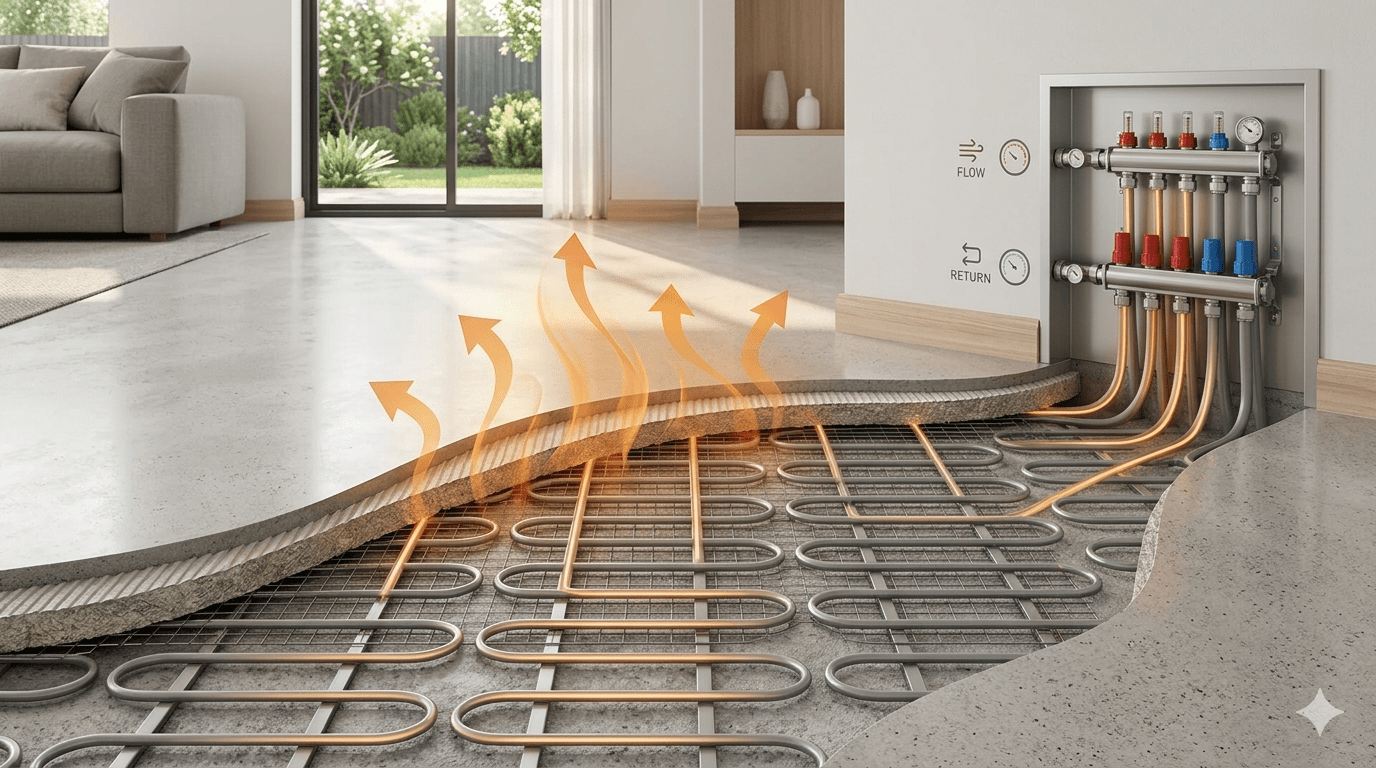

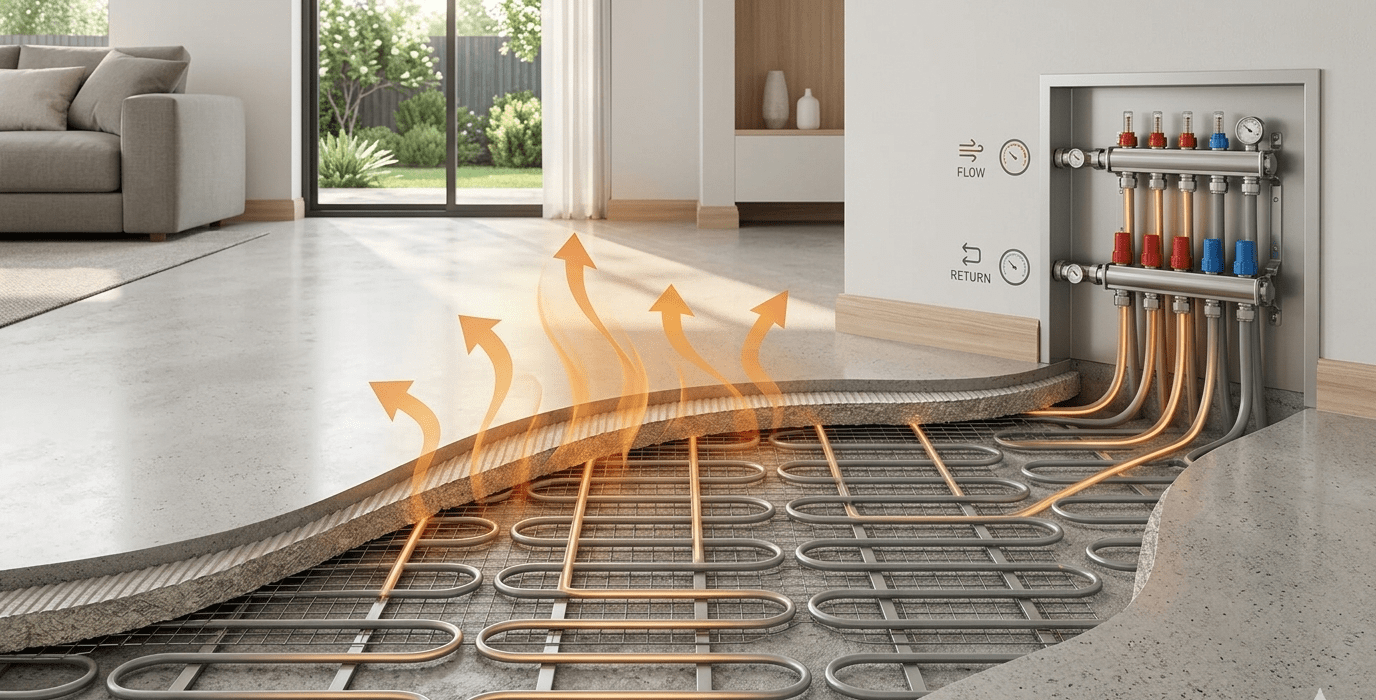

Underfloor and In-Slab Hydronic Heating
Flexible tubing is embedded within or beneath the floor to create a radiant heat source across the entire floor area. In a new build, tubing is cast directly into the concrete slab before it sets. In existing homes, it can be installed under suspended timber or engineered flooring.
- High thermal mass: slow to heat up but retains warmth well after switching off
- Most efficient with consistent heating schedules in well-insulated homes
- Completely invisible: no panels on walls, no grilles in the floor
- Best suited to new builds in cold-climate regions
Wall Radiators and Hydronic Panel Radiators
Wall-mounted radiators connect directly to the pipe network and deliver heat through radiation and natural convection. Traditional column radiators suit period and Victorian-era homes; flat-panel radiators offer the same output in a lower-profile format.
- Fast response time, ideal for rooms not in constant use
- Most retrofit-friendly emitter type with minimal structural work required
- Wide range of sizes, output ratings, and finishes available
Hydronic Towel Rails
Towel rails connect to the main loop and serve a dual function: space heating and towel warming. A standard inclusion in bathrooms and laundries, they can include an electric backup element for independent use during summer when the main system is off.
Hydronic Heat Sources Explained
The heat source determines running costs, carbon emissions, and long-term efficiency. All sources heat the same network of pipes; the difference lies in how they generate that heat and at what cost.
| Heat Source | Efficiency | Upfront Cost | Running Cost | Best Suited To |
|---|---|---|---|---|
| Condensing gas boiler | Up to 90% | Low to Medium | Medium (gas tariff linked) | Existing gas connections |
| Hydronic heat pump | COP 3 to 6+ | Medium to High | Low | New installs, solar PV homes |
| Solar-assisted hydronic | Very high (solar input) | High | Very low | Sustainability-focused homes |
| Electric resistance | ~100% (no COP benefit) | Low | High | Small zones, no gas access |
Gas Boilers
Gas boilers remain the most common heat source in established hydronic systems. Modern condensing models recover heat from flue gases to reach around 90 percent efficiency. Running costs are tied to gas tariffs, which have risen sharply in recent years, making heat pumps increasingly attractive for new installations.
Hydronic Heat Pumps
Heat pumps extract ambient heat from outdoor air and transfer it to the water circuit, delivering a COP of three to six or more. The Daikin CO2 Heat Pump achieves a COP of up to 6.15, operates down to -10 degrees Celsius, runs at a low 38 dB, and comes with a 10-year warranty, making it well suited to the colder winters of the Southern Highlands and Goulburn regions.
Solar-Assisted Hydronic Systems
Solar thermal collectors pre-warm the water before it reaches the boiler or heat pump, reducing the energy demand on the primary heat source. A backup heat source covers overcast periods. This configuration delivers the lowest running costs and the highest rebate eligibility of any hydronic setup.
Electric Hydronic Heating
Electric resistance elements heat water directly at a 1:1 electricity-to-heat ratio. Upfront costs are lower than a heat pump, but ongoing running costs are significantly higher. Best suited to small supplementary zones or properties without a gas connection where a heat pump is not feasible.
The Benefits of Hydronic Heating
Hydronic heating addresses several practical limitations of air-based heating that Australian homeowners commonly experience, from uneven warmth and allergen circulation to high running costs and unwanted noise.
- Consistent, even warmth. Radiant heat warms surfaces and objects evenly, eliminating the cold spots and ceiling stratification common with ducted systems.
- No airborne allergens. No air movement means no circulation of dust, pollen, or pet dander, making it a significantly healthier option for asthma and allergy sufferers.
- Silent operation. No fans, compressors, or duct turbulence: the system runs completely silently.
- Lower running costs. Water retains heat more effectively than air, and with zone controls and a heat pump, running costs can be well below those of gas ducted heating.
- Zone control by room. Each area is independently controlled; unoccupied rooms draw no energy.
- Reduced carbon footprint. Paired with a heat pump or solar input, hydronic systems produce substantially lower emissions than gas combustion heating.
- Design flexibility. Underfloor systems are invisible; radiators and towel rails come in a wide range of modern finishes with no ceiling voids or visible duct runs required.
Hydronic Heating Cost in Australia
Hydronic heating carries a higher upfront cost than most alternatives. However, the total cost of ownership across a 20 to 25-year system lifespan is often competitive when low running costs and minimal maintenance are factored in alongside the installation figure.
Improving your home’s insulation before hydronic heating installation reduces the required capacity and lowers long-term running costs. Ceiling insulation, draught sealing, and double glazing all reduce heat loss and allow the system to operate at lower flow temperatures, improving heat pump efficiency across every heating season.
Installation Costs
Costs vary based on home size, emitter type, heat source, and whether the project is a new build or a retrofit.
| System Configuration | Typical Cost Range (AU$) |
|---|---|
| Underfloor in-slab system, new build (per m2) | $60 to $120 per m2 |
| Whole-home underfloor system, new build (approx. 200 m2) | $15,000 to $35,000+ |
| Radiator-based retrofit system (3 to 4 bedroom home) | $12,000 to $25,000 |
| Heat pump heat source (installed) | $3,000 to $8,000 |
| Condensing gas boiler heat source (installed) | $2,500 to $5,000 |
| Hydronic towel rail (per unit, installed) | $800 to $2,000 |
Retrofit projects involving concrete slab work push costs substantially higher. New builds are far more cost-effective for underfloor integration as the tubing is embedded before the slab is poured.
Running Costs and Energy Efficiency
Running costs depend on the heat source and local energy tariffs. Indicative figures for a three-bedroom home in a cold-climate Australian region:
| Heat Source | Estimated Annual Running Cost |
|---|---|
| Condensing gas boiler | $900 to $1,400 per year |
| Hydronic heat pump (grid electricity) | $500 to $900 per year |
| Solar-assisted with heat pump backup | $200 to $500 per year |
| Electric resistance heating | $1,800 to $3,000+ per year |
Hydronic Heating Maintenance
Hydronic systems have significantly lower maintenance requirements than ducted heating. The closed-loop water circuit has no exposed filters, fan components, or duct surfaces to degrade. A basic annual routine is all that is needed to maintain performance and equipment longevity.
| Maintenance Task | Frequency | Who Performs It |
|---|---|---|
| Bleed radiators to release trapped air | Annually, start of winter | Homeowner |
| Check system pressure (target: 1.0 to 1.5 bar) | Monthly | Homeowner |
| Inspect visible pipe joints and valves | Annually | Homeowner |
| Boiler or heat pump service and safety check | Annually | Licensed technician |
| Inhibitor fluid concentration check | Every 2 years | Licensed technician |
| Full system flush (if sludge or scale detected) | As required | Licensed technician |
Annual servicing of the heat source maintains warranty cover, verifies combustion safety for gas boilers, and confirms the system is operating at rated efficiency. A corrosion inhibitor in the water circuit prevents internal rust and scale, which is particularly important in mixed-metal systems.
Is Hydronic Heating Right for Your Australian Home?
Hydronic heating performs at its best in specific circumstances. The table below outlines the situations where it is a strong fit and where an alternative system may be more practical.
| Hydronic Heating Is a Strong Fit If… | Consider an Alternative If… |
|---|---|
| Building new with a concrete slab | You also need summer cooling (separate system required) |
| Larger home in a consistently cold-climate region | Budget is limited and short payback period is a priority |
| Household has asthma, allergies, or respiratory sensitivities | Small apartment where one split system covers all needs |
| Property has no natural gas connection | Retrofitting in-slab heating into an existing concrete slab |
| You have solar PV and want to offset heating costs | Rental property where capital expenditure is constrained |
For properties in the Southern Highlands, Southern Tablelands, and Goulburn regions, average overnight winter temperatures of two to three degrees Celsius make the case for whole-home radiant heating clear. Hydronic systems are designed precisely for sustained performance in these conditions.
Hydronic Heating vs Other Home Heating Systems
Hydronic heating occupies a distinct position in the market: higher initial investment, lower long-term running costs, and a different performance profile to ducted and split systems. For a detailed breakdown of gas ducted alternatives, a guide to ducted gas heating can really help you out.
| Feature | Hydronic Heating | Ducted Gas Heating | Ducted Reverse Cycle | Split System |
|---|---|---|---|---|
| Heat distribution | Radiant, even | Forced air | Forced air | Forced air |
| Indoor air quality | Excellent | Can circulate dust | Can dry air | Can dry air |
| Noise level | Silent | Moderate (fan) | Moderate to high | Moderate |
| Running cost | Low (with heat pump) | Medium | Low to medium | Low to medium |
| Upfront cost | Higher | Medium | Medium to high | Low to medium |
| Includes cooling | No (separate system) | Add-on module only | Yes | Yes |
| Zoning capability | Excellent, by room | Yes | Yes | Room by room |
| Best suited to | Larger homes, cold areas | Homes with gas | Year-round mild climates | 1 to 3 rooms |
Hydronic Heating Rebates and Incentives in Australia
Government rebates and incentive schemes can reduce a meaningful portion of the upfront cost of a hydronic installation, particularly when the system includes an energy-efficient heat pump. Eligibility and values change regularly; confirm current entitlements with your installer before purchase.
Victoria: Victorian Energy Upgrades (VEU) Program
- Provides point-of-sale discounts on eligible hydronic heat pumps and high-efficiency boilers
- Households replacing a gas boiler with a heat pump-based hydronic system may qualify for significant rebates
- Solar Victoria offers separate rebates for solar-integrated hydronic configurations
New South Wales: Energy Savings Scheme (ESS)
- Heat pump installations for space heating may generate energy savings certificates
- Certificate value is applied as an upfront discount at the point of purchase
- Value fluctuates with the market but can reduce installed cost by several hundred to several thousand dollars
Federal: Small-Scale Renewable Energy Scheme (SRES)
- Eligible heat pump and solar thermal installations generate small-scale technology certificates (STCs)
- STCs are typically applied as a direct upfront discount by the installer at point of sale
- The number of certificates depends on the system’s rated output and installation location
Making the Right Heating Decision for Your Home
Hydronic heating delivers a level of consistent warmth, indoor air quality, and operating efficiency that air-based systems cannot replicate. The range of emitter types and heat source options makes it adaptable to a wide range of Australian homes and budgets, with particular strength in the cooler southern regions where the heating season is extended and whole-home warmth matters throughout winter.
The investment is higher upfront than most alternatives, but the combination of low running costs, minimal maintenance, and a 20 to 25-year system lifespan produces strong long-term value for most cold-climate Australian homes.For a system specification and installation assessment tailored to your property, contact Tempco Energy to arrange a site consultation with our hydronic heating specialists.
